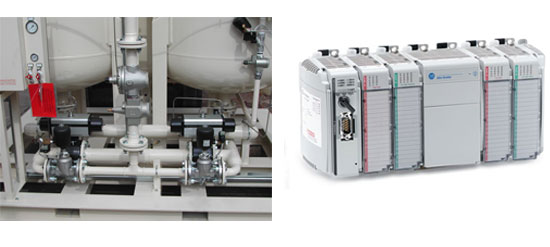

OXYSWING Twin-Tower PSA Oxygen Generators
Compared to our Modular systems, the OXYSWING Twin-Tower PSA oxygen generators are able to cover larger oxygen consumptions.
These systems are designed for heavy-duty operation, where system availability in combination with low running costs are primary objectives.
The key features of the OXYSWING Twin-Tower are:
- High Reliability
Low gas speeds through the adsorber beds, first-class components, stainless steel valve bodies and instrument air tubing, heavy-duty industrial PLC. It should work. Always.
- Lowest Energy Consumption
Energy cost is your major expense, not depreciation. Fast pay-back assured. Let OXYSWING really make you save money.
- Easy Integration
All system tie-in points on one side in order to facilitate the installation of the plant and the integration with your existing equipment.
- Safe
Heavy-duty adsorber vessels, designed and certified for an unlimited number of cyclic loads.
- Customization
An extended list of options allows you to define your specific OXYSWING Twin-Tower PSA oxygen generator adjusted to your individual need.
Technical Specifications
OXYSWING
PSA
Generator |
Oxygen Production Flow
(Nm³/h)/(scfh) |
Length
(mm)/
(inch) |
Width
(mm)/
(inch) |
Height
(mm)/
(inch) |
Weight
(kg)/
(lbs) |
| 90 vol.% |
93 vol.% |
95 vol.% |
| OS-70 |
28,5
1,085 |
27,5
1,050 |
27,0
1,025 |
1.660
65 |
1.550
61 |
3.270
129 |
3.100
6,835 |
| OS-85 |
35,2
1,340 |
31,6
1,200 |
28,3
1,075 |
2.000
79 |
1.600
63 |
3.900
154 |
4.010
8,840 |
| OS-100 |
42,4
1,615 |
38,4
1,460 |
34,1
1,295 |
2.100
83 |
1.800
71 |
3.200
126 |
4.515
9,955 |
| OS-110 |
50,0
1,900 |
44,5
1,695 |
40,2
1,530 |
2.320
91 |
2.000
79 |
3.600
141 |
5.300
11,685 |
| OS-160 |
67,8
2,580 |
59,6
2,270 |
53,4
2,030 |
2.375
94 |
2.000
79 |
3.600
141 |
6.000
13,230 |
| OS-180 |
77,6
2,950 |
68,0
2,590 |
61,3
2,330 |
2.660
105 |
2.150
85 |
3.750
148 |
9.000
19,840 |
| OS- 220 |
95,0
3,615 |
83,0
3,160 |
75,8
2,885 |
2.900
114 |
2.400
95 |
4.650
183 |
10.785
23,775 |
| OS-280 |
120,8
4,600 |
105,7
4,020 |
98,0
3,730 |
3.200
126 |
2.450
97 |
4.400
173 |
14.000
40,865 |
Feed Air Pressure = 7,0 bar(g) / 100 psig
Oxygen Discharge Pressure = 3,0 - 4,5 bar(g) / 45 - 65 psig
Oxygen Dew Point = -60 °C / -76 F at atmospheric pressure
Standard Components
- Feed air filters
- Adsorber vessels to 97/23/EC / ASME VIII Div. 2
- Process valves with SS316L bodies
- Process piping within skid boundary
- Exhaust silencer
- Air and oxygen pressure regulation
- Local instrumentation
- Instrument air tubing & fittings in SS316L
- Control system with Allen-Bradley PLC
- Pressure switch for automated idle-mode
Options
- Oxygen analyzer with zirconium oxide sensor
- Dew point analyzer
- Electronic product flow meter
- Feed air/oxygen pressure transducer
- Feed air/oxygen temperature transducer
- Product flow totalizer
- Allen Bradley PanelViewTM graphical display
- Telemetry
- Ethernet data communication port
- Oxygen high pressure booster
- Oxygen cylinder filling rack
- Medical upgrade with CO/CO2 analyzer
