Special Offer

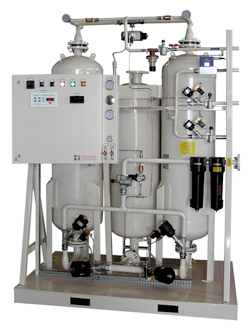

One (1) high quality PSA nitrogen generator, model NITROSWING NS-35H
Features
- PSA towers constructed with internal molecular sieve bed support, flow distribution and filled with Carbon Molecular Sieve
- PSA towers designed to EN-286, 87/404/CEE and 97/23/CEE for pressure vessels and pressurized components, including fatigue analysis for cyclic load
- Process piping made of painted carbon steel, including pneumatic actuated valves incl. solenoid control valves (valve bodies in AISI 316L)
Special designed exhaust silencer with flanged waste gas discharge- Air and nitrogen pressure regulation
- Fail-Safe Package (off-spec nitrogen automatically vented to atmosphere)
- Painted carbon steel skid
- Fully pre-assembled and electrically wired
- PLC controlled for fully automatic and unattended operation (Allen Bradley CompactLogixTM L31)
- Digital and analogue I/O cards
- Residual oxygen analyser with zirconium-oxide sensor and calibration connection
- Electronic flow meter (temperature difference)
- Local control panel with hour meter, control lamps and
alphanumerical displays for oxygen analyser and flow meter - Local instrumentation
- Instrument air tubing in stainless steel AISI 316
- Safety valves for both PSA towers
Dimensions & Weight
| Lenght (mm) |
Width (mm) |
Width (mm) |
Weight (kg) |
|---|---|---|---|
| 1.600 | 1.000 | 2.200 | 1.000 |
Performance
a) Feed Air Pressure = 7,5 bar(g) / 100 psig
| Nitrogen Production Flow (Nm³/h)/(scfh) | |||||
|---|---|---|---|---|---|
| 99,99% | 99,9% | 99,5% | 99,0% |
98,0% | 97,0% |
| 5,0 187 |
9,5 355 |
14,5 541 |
18,0 672 |
25,0 933 |
30,0 1,120 |
Nitrogen Discharge Pressure = 6,0 bar(g) / 87 psig
Nitrogen Dew Point = < -40 °C / -40 F at atmospheric pressure
b) Feed Air Pressure = 10,0 bar(g) / 150 psig
| Nitrogen Production Flow (Nm³/h)/(scfh) | |||||
|---|---|---|---|---|---|
| 99,99% | 99,9% | 99,5% | 99,0% |
98,0% | 97,0% |
| 6,0 224 |
10,0 373 |
19,0 709 |
25,0 933 |
30,0 1,120 |
35,0 1,307 |
Nitrogen Discharge Pressure = 8,0 bar(g) / 116 psig
Nitrogen Dew Point = < -40 °C / -40 F at atmospheric pressure
All performance data valid for 20 °C, 1,01325 mbar(a) ambient conditions.
Year of Construction: 2005
Running Hours: 0,0 (unused)
Delivery: ten (10) days from receipt of Purchase Order
Special Price: Euro 13.000,00, VAT excl., incl. functional & performance test
(EXW Grosseto, Italy)
If you are interested, please contact us.
Publication Date: September 2011
