The unique modular design of the NITROSWING PSA Nitrogen Generators
The design of the NITROSWING generators (international patent) offers you the following advantages:
- Unlimited Flexibility
The best fit solution to any nitrogen supply requirement. No risk for excessive oversized systems.
- Easy System Adjustment
In case your nitrogen supply conditions will change, simply adjust your NITROSWING system by varying the number of PSA modules. Just by yourself, no other modifications to the system required.
- Lowest Energy Consumption
Fast pay-back assured. Let NITROSWING really make you save money.
- High Reliability
First-class components, stainless steel process piping and valve bodies, heavy-duty PLC. It should work. Always.
- Compact
No other PSA nitrogen system on the market with such limited space requirements. Ideal for container solutions.
- Easy Fleet Management
Identical components for the entire model range mean limited spare part management, easy maintenance.
Flexibility & System Upgrade

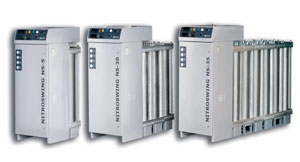

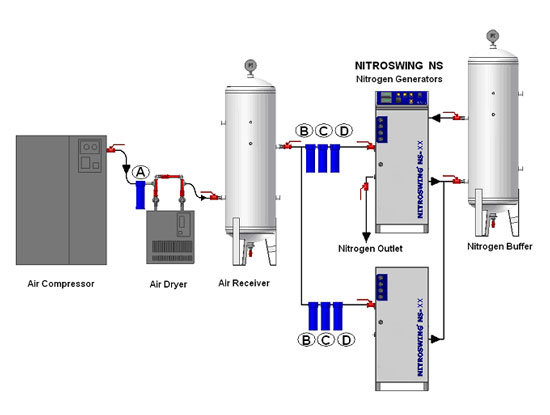

Each NITROSWING modular PSA nitrogen generator can easily be upgraded at any time simply by adding modules or by installing a so-called Dual-Bank in parallel without additional modifications.
A Dual-Bank is a PSA nitrogen generator identical to the standard NITROSWING, but without PLC and power supply, and which will be installed parallel to the standard generator. The Dual Bank will get its power and control signals from the NITROSWING through a single cable connection (master/slave principle).
One NITROSWING is able to control up to maximum of two Duals Banks in parallel.
Technical Specifications
Feed Air Pressure = 7,0 bar(g) / 100 psig
NITROSWING
PSA Generator |
Nitrogen Production Flow (Nm³/h)/(scfh) |
| 99,999% |
99,99% |
99,9% |
99,5% |
99,0% |
98,0% |
97,0% |
| NS-5 |
1,3
50 |
2,2
84 |
3,7
142 |
6,9
265 |
8,0
308 |
9,8
378 |
11,1
427 |
| NS-10 |
2,5
98 |
4,4
168 |
7,4
285 |
13,8
530 |
16,0
617 |
19,6
756 |
22,1
853 |
| NS-20 |
3,9
150 |
6,5
252 |
11,1
427 |
20,6
795 |
24,0
925 |
29,4
1,135 |
33,2
1,280 |
| NS-25 |
5,2
199 |
8,7
336 |
14,8
570 |
27,5
1,060 |
32,0
1,233 |
39,2
1,513 |
44,3
1,707 |
| NS-30 |
6,4
246 |
10,9
420 |
18,5
712 |
34,4
1,325 |
40,0
1,542 |
49,1
1,891 |
55,4
2,134 |
| NS-35 |
7,6
293 |
13,1
504 |
22,2
855 |
41,3
1,591 |
48,0
1,850 |
58,9
2,269 |
66,4
2,560 |
| NS-40 |
9,2
356 |
15,2
588 |
25,9
997 |
48,1
1,856 |
56,0
2,158 |
68,7
2,647 |
77,5
2,987 |
| NS-45 |
10,5
405
|
17,4
672 |
29,6
1,140 |
55,0
2,121 |
64,0
2,467 |
78,5
3,025 |
88,6
3,414 |
Nitrogen Discharge Pressure = 6,0 bar(g) / 87 psig
Nitrogen Dew Point = < -40 °C / -40 F at atmospheric pressure
ATTENTION: The flow rates in the above table can easily be doubled or even tripled in case of combination of one or two parallel Dual Banks to the Master Unit.
Feed Air Pressure = 10,0 bar(g) / 150 psig
NITROSWING
PSA Generator |
Nitrogen Production Flow (Nm³/h)/(scfh) |
| 99,999% |
99,99% |
99,9% |
99,5% |
99,0% |
98,0% |
97,0% |
| NS-5 |
1,2
47 |
2,6
99 |
3,9
150 |
7,6
292 |
10,0
387 |
13,4
517 |
14,1
543 |
| NS-10 |
2,4
92
|
5,1
198 |
7,8
300 |
15,1
584 |
20,1
774 |
26,8
1,034 |
28,2
1,087 |
| NS-20 |
3,7
141 |
7,7
298 |
11,7
451 |
22,7
875 |
30,1
1,161 |
40,2
1,551 |
42,3
1,630 |
| NS-25 |
4,8
187 |
10,3
397 |
15,6
601 |
30,3
1,167 |
40,2
1,548 |
53,7
2,068 |
56,4
2,174 |
| NS-30 |
6,0
231 |
12,9
496 |
19,5
751 |
37,9
1,459 |
50,2
1,934 |
67,1
2,585 |
70,5
2,717 |
| NS-35 |
7,1
275 |
15,4
595 |
23,4
901 |
45,4
1,751 |
60,2
2,321 |
80,5
3,102 |
84,6
3,260 |
| NS-40 |
8,7
334 |
18,0
694 |
27,3
1,051 |
53,0
2,043 |
70,3
2,708 |
93,9
3,619 |
98,7
3,804 |
| NS-45 |
9,9
380 |
20,6
794 |
31,2
1,201 |
60,6
2,334 |
80,3
3,095 |
107,3
4,136 |
112,8
4,347 |
Nitrogen Discharge Pressure = 8,0 bar(g) / 116 psig
Nitrogen Dew Point = < -40 °C / -40 F at atmospheric pressure
ATTENTION: The flow rates in the above table can easily be doubled or even tripled in case of combination of one or two parallel Dual Banks to the Master Unit.
Dimensions & Weight
NITROSWING
PSA Generator |
Length
(mm)/(inch) |
Width
(mm)/(inch) |
Height
(mm)/(inch) |
Weight
(kg)/(lbs) |
| NS-5 |
520
20 |
700
28 |
1.340
53 |
210
465 |
| NS-10 |
520
20 |
930
37 |
1.340
53 |
315
695 |
| NS-20 |
520
20 |
1.160
46 |
1.340
53 |
420
925 |
| NS-25 |
520
20 |
1.390
55 |
1.340
53 |
525
1,155 |
| NS-30 |
520
20 |
1.620
64 |
1.340
53 |
630
1,390 |
| NS-35 |
520
20 |
1.850
73 |
1.340
53 |
735
1,620 |
| NS-40 |
520
20 |
2.080
82 |
1.340
53 |
840
1,850 |
| NS-45 |
520
20 |
2.310
91 |
1.340
53 |
945
2,085 |
Standard Components
- Feed air filters
- Adsorber vessel module(s)
- Pneumatic valves with SS316L bodies
- Internal piping & fittings in SS316
- Exhaust mufflers in SS316L
- Nitrogen pressure regulator in SS316L
- Local instrumentation
- Control system with Allen-Bradley PLC
- Pressure switch for automated idle-mode
Options
- Dual Bank unit (max. 2)
- Residual oxygen analyzer with zirconium oxide sensor
- Electronic product flow meter
- Product flow totalizer
- Semi-graphical HMI interface
- Touch panel HMI interface
- Telemetry
- Ethernet data communication port
- Nitrogen booster
- Customized cabinet color
